Advanced Intraoral Imaging with Enhanced Reach

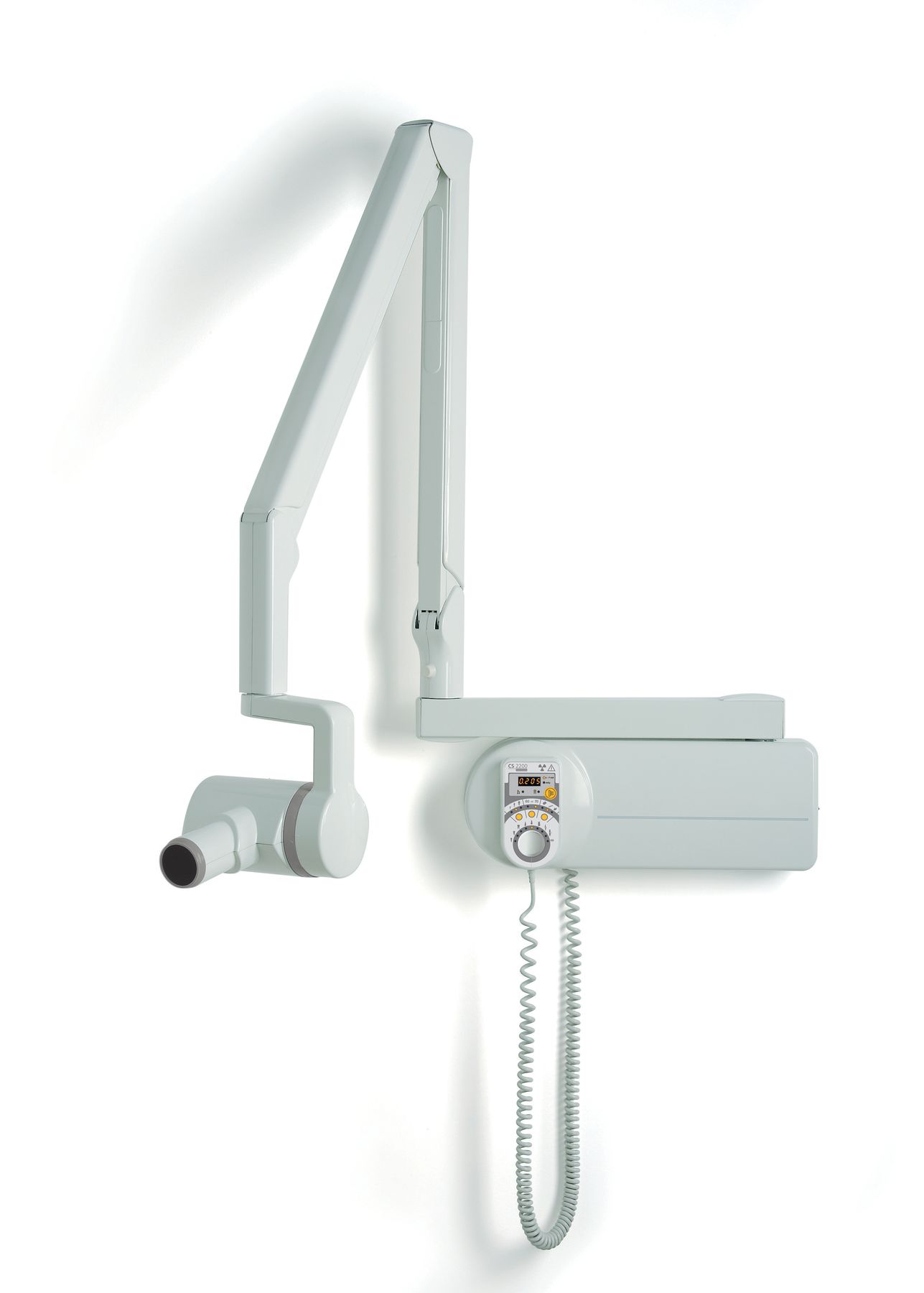

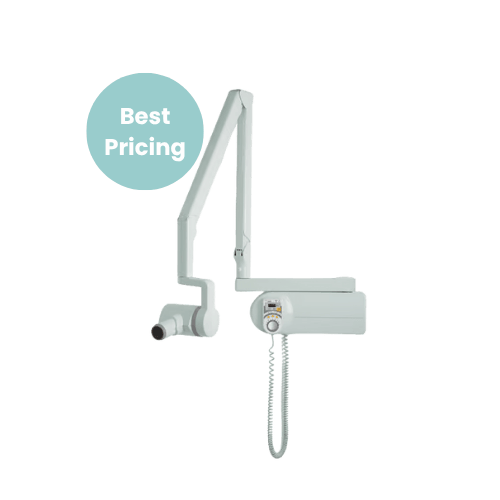

The Carestream Dental CS 2200 with a 230V power supply and 188 cm standard wall mount arm is engineered to deliver high-quality intraoral radiographs with minimal radiation exposure. Its high-frequency (DC) X-ray generator ensures sharp, detailed images, enhancing diagnostic capabilities while prioritizing patient safety.

Key Benefits

• Superior Image Quality: 0.7 mm focal spot provides high-resolution images for accurate diagnostics.

• Reduced Radiation Exposure: Emits up to 30% less radiation compared to conventional generators, safeguarding patients and staff.

• Adjustable Tube Voltage: Selectable 60 or 70 kV settings allow optimization of image contrast and gray scale.

• Versatile Compatibility: Seamlessly integrates with both digital sensors and traditional film systems.

• Extended Reach: 205 cm (81 in) arm length accommodates various operatory layouts, providing flexibility in positioning.

• User-Friendly Operation: Intuitive control panel with pre-programmed settings simplifies workflow and reduces training time. ​

Technical Specifications

• Power Supply: 230-240 V / 50 Hz

• X-ray Generator: High-frequency DC (300 kHz)

• Tube Voltage: 60 or 70 kV

• Tube Current: 7 mA (film) / 4 mA (digital)

• Focal Spot Size: 0.7 mm

• Focal Spot to Skin Distance: 20 cm

• Arm Length: 205 cm (81 in)

Enhanced Safety Features

• Thermal Safety System: Prevents overheating by disabling exposure during cool-down periods, indicated by visual and audible alerts.

• Beam Limiting Device: 6 cm diameter collimator reduces patient exposure by limiting the X-ray beam to the area of interest.

• Remote Exposure Switch: Optional accessory allows operators to initiate exposures from a safe distance, minimizing radiation exposure.

Optimized for Clinical Workflow

Designed with the dental professional in mind, the CS 2200's intuitive controls and ergonomic design facilitate quick and accurate positioning, leading to consistent, high-quality images. Its compatibility with various imaging systems ensures it can adapt to the evolving needs of modern dental practices.

Versatile Configurations

The CS 2200 system is adaptable to various clinical environments, offering multiple mounting options and arm lengths to suit specific needs. Its compatibility with both digital and analog imaging systems ensures seamless integration into existing workflows.
